Power over SPE (PoSPE) Industrial HAT++ Add-on for Raspberry Pi
Development
Proprietary PoSPE board enabling power sourcing and delivery over Single Pair Ethernet (SPE), derived from established design approaches and industry practices.
This board extends BE-IIS HAT++ 10BASE-T1S and 10BASE-T1L HATs by enabling Power over Single Pair Ethernet (PoSPE). It is fully transparent to the BE-IIS HAT++ ecosystem, does not affect stackability, and instead enables power delivery for stacked systems, supporting seamless system integration and scalable system expansion.
Quick Facts
Order Code
BE-IIS-HPP-PoSPE
BE-IIS-HPP-PoSPE
Revision
B
B
Status
Development
Development

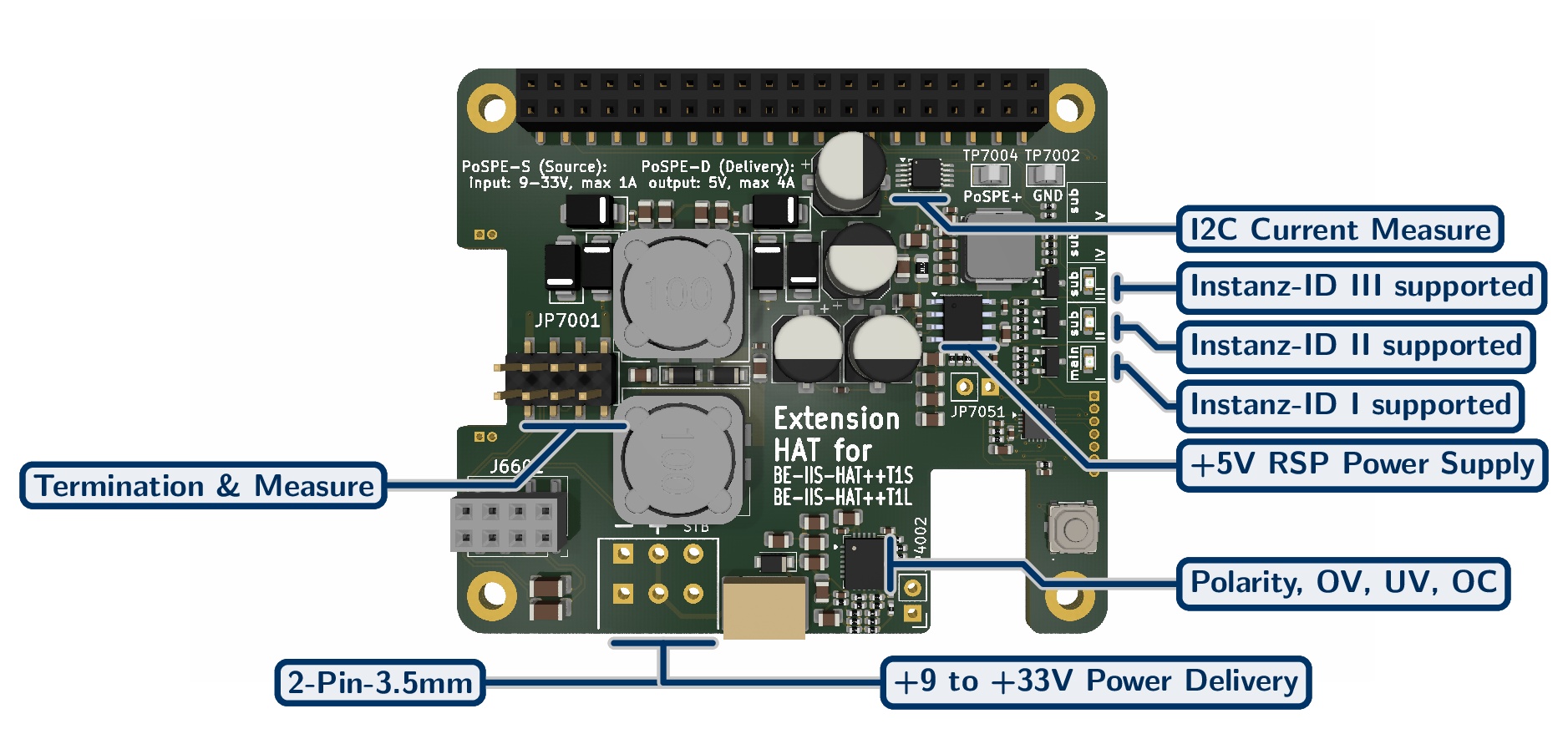

Key Features
- PSE (Power source) capability
- PD (Power sink) capability
- Up to 1A over SPE
- 9--33V operating range
- Regulated 5V output (RSP supply)
- Up to 4A output current
- OV, UV and OC protection
- Reverse polarity protection
- Current sensing via I2C
- ESD and transient protection
- RoHS compliant
- Quality component suppliers
Product Description

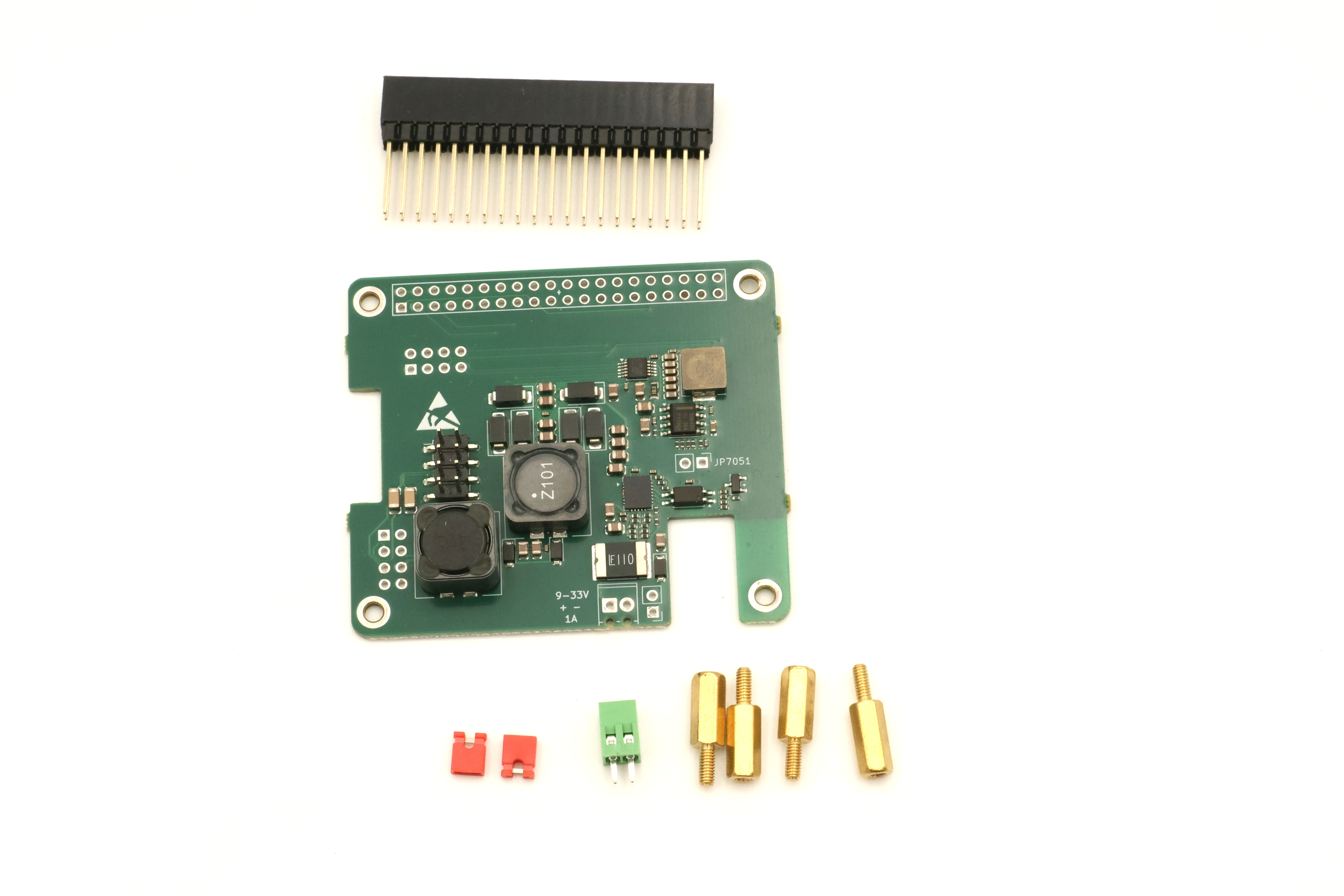

The PoSPE HAT is a Raspberry Pi HAT+ compliant interface board providing DC power coupling to the Single Pair Ethernet data line via an integrated low-pass filter. It supports current measurement via I²C, includes voltage and current protection for the power source, and provides a regulated +5 V supply for the Raspberry Pi.
Applications
- PoSPE evaluation
- Prototyping
- Industrial network evaluation
- Education and laboratory use
