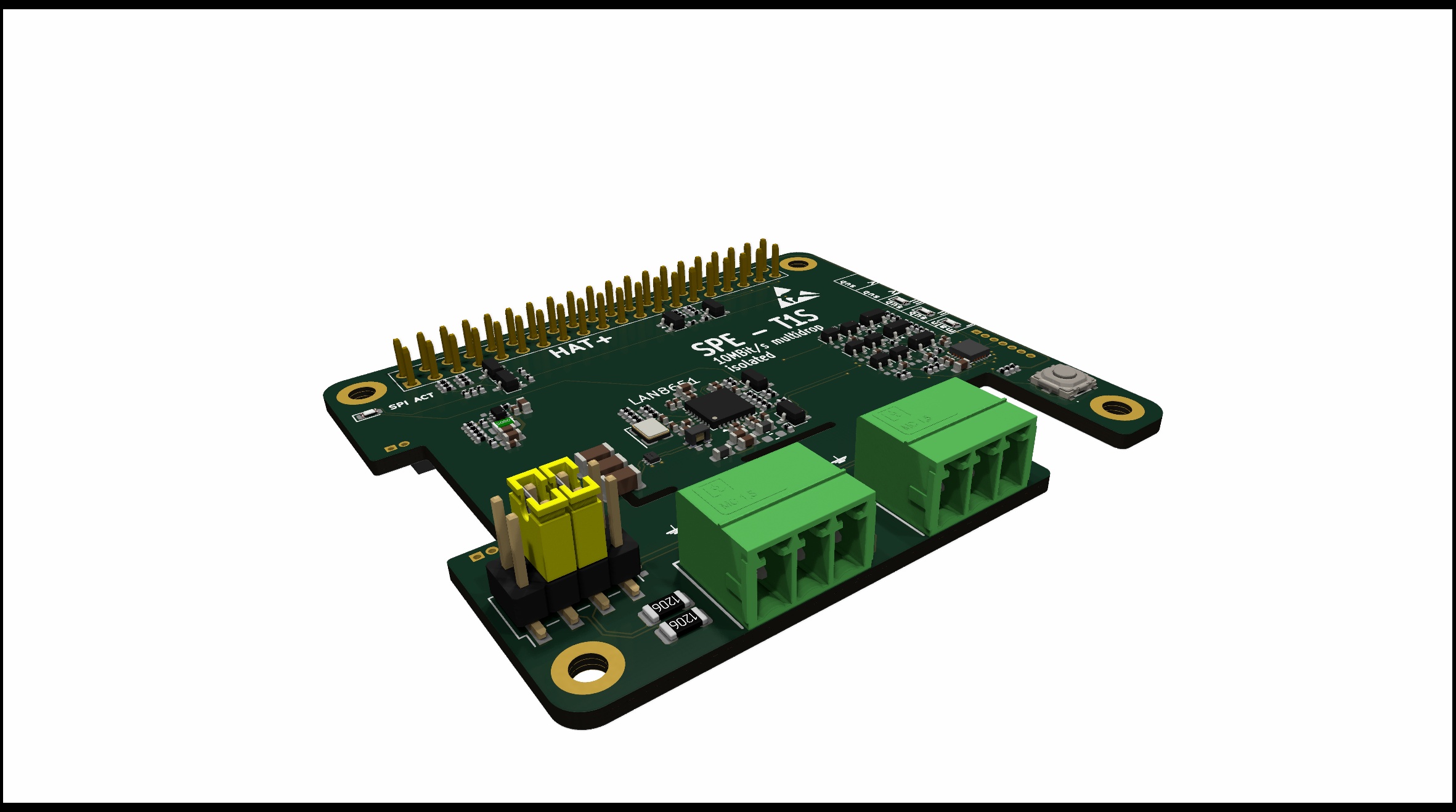

10BaseT1S Industrial HAT++
Datasheet Schematic STEP Layout
10BASE-T1S (IEEE 802.3cg) enables 10 Mbit/s Ethernet communication over a single twisted pair in multidrop topologies, supporting at least 8 nodes over distances of up to at least 25 m.
This HAT enables multidrop communication based on 10BASE-T1S Ethernet with an onboard MAC-PHY.
Key Features
- 10BASE-T1S compliant with IEEE 802.3cg
- LAN8651 10BASE-T1S MAC-PHY
- Galvanically isolated MDI
- Raspberry Pi HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable CS and IRQ routing
- Optional PoSPE support
- Two connector options available
- RoHS compliant
- Quality component suppliers
Applications
- Technology evaluation
- Industrial network evaluation
- Prototyping
- Education and laboratory use
- Switch and node evaluation
