10BaseT1L Industrial HAT++
Datasheet Schematic STEP Layout
10BASE-T1L (IEEE 802.3cg) enables 10 Mbit/s Ethernet communication over a single twisted pair for long-reach point-to-point links.

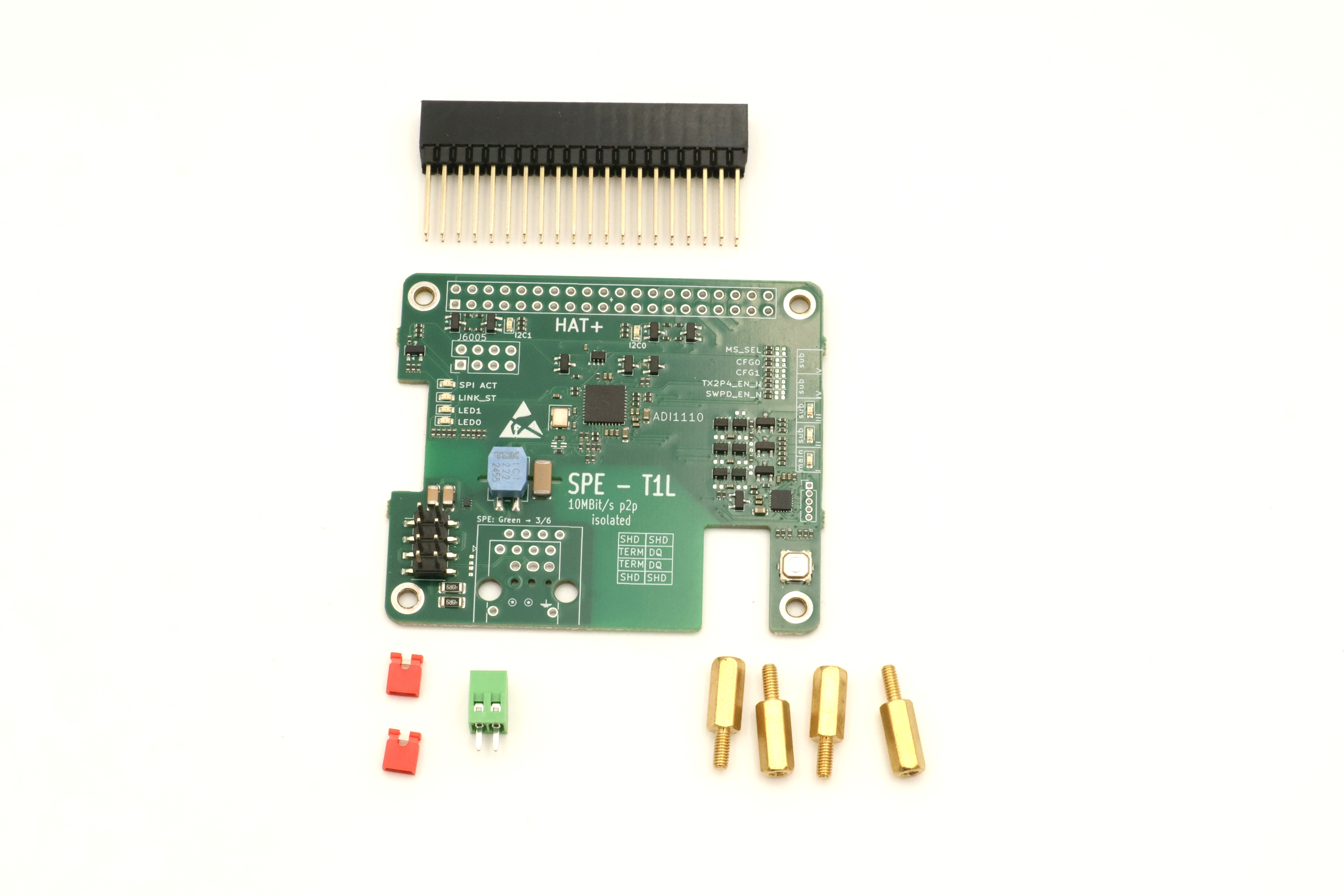

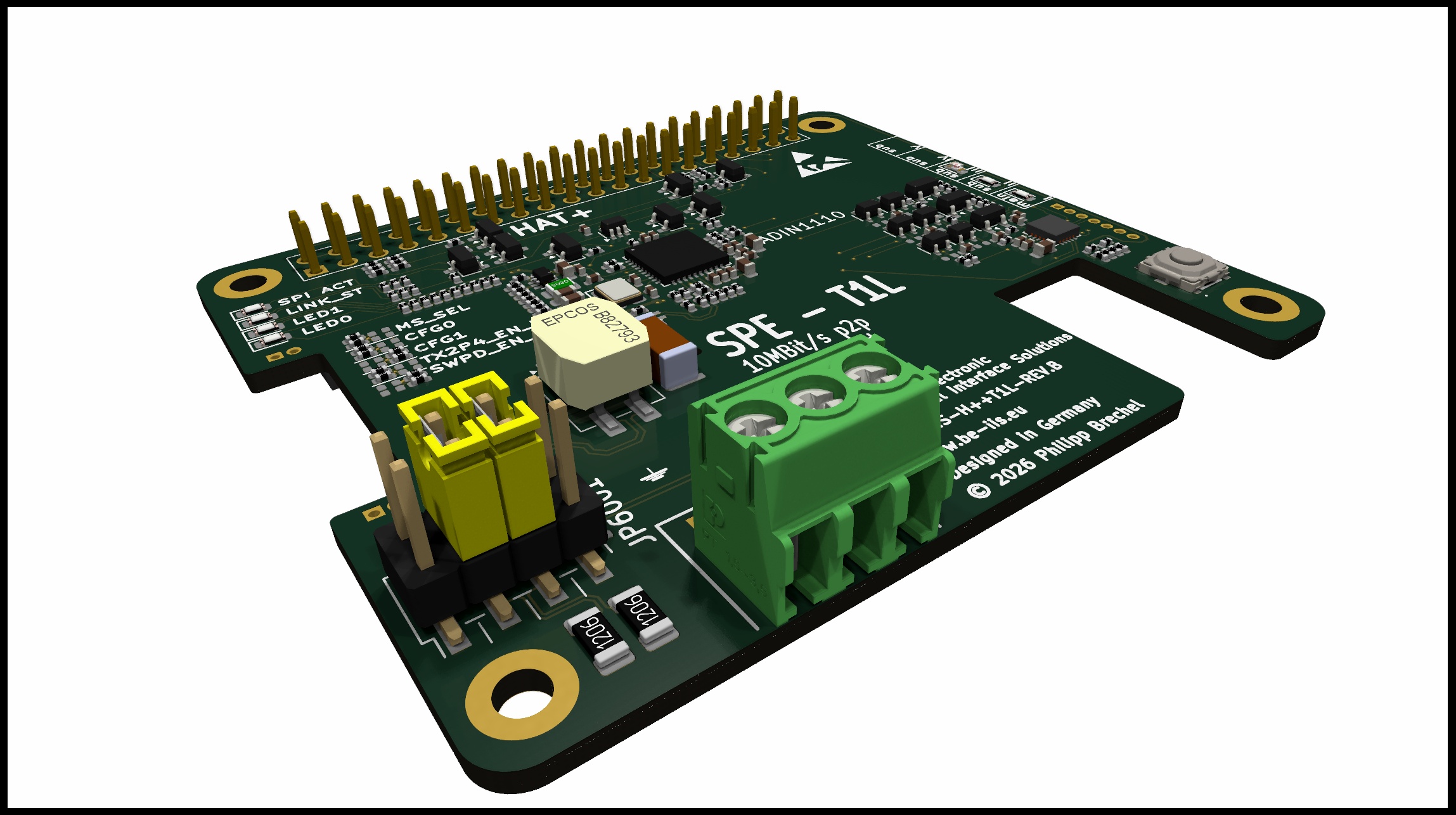

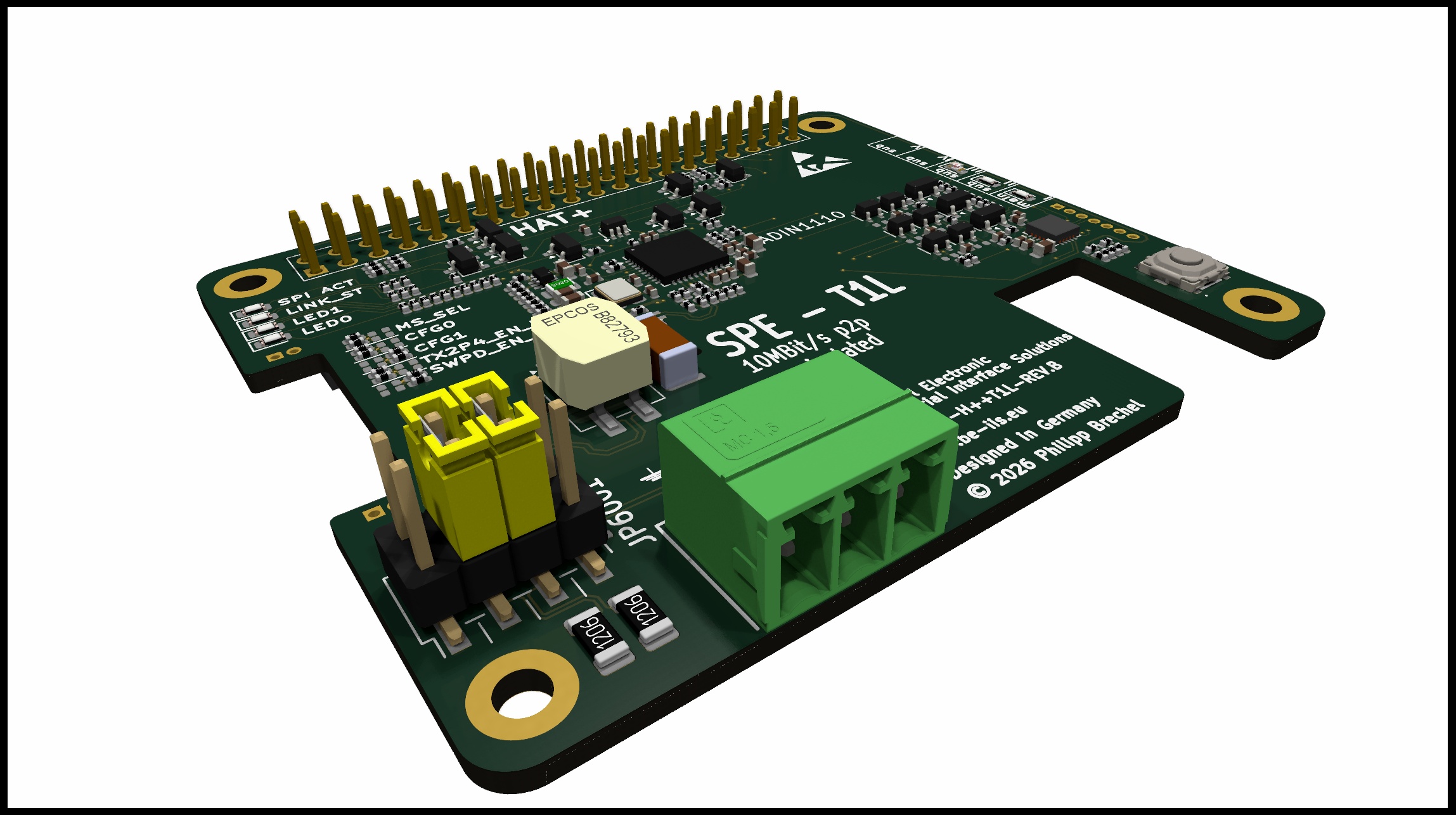

This HAT enables 10BASE-T1L communication based on an onboard Ethernet MAC-PHY.
Key Features
- 10BASE-T1L compliant with IEEE 802.3cg
- ADIN1110 10BASE-T1L MAC-PHY
- Galvanically separated MDI
- Raspberry Pi HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable CS and IRQ routing
- Optional PoSPE support
- Connector J6000 updated to new connector option
- RoHS compliant
- Quality component suppliers
Applications
- Technology evaluation
- Industrial network evaluation
- Prototyping
- Education and laboratory use
- Long-reach Ethernet node evaluation
