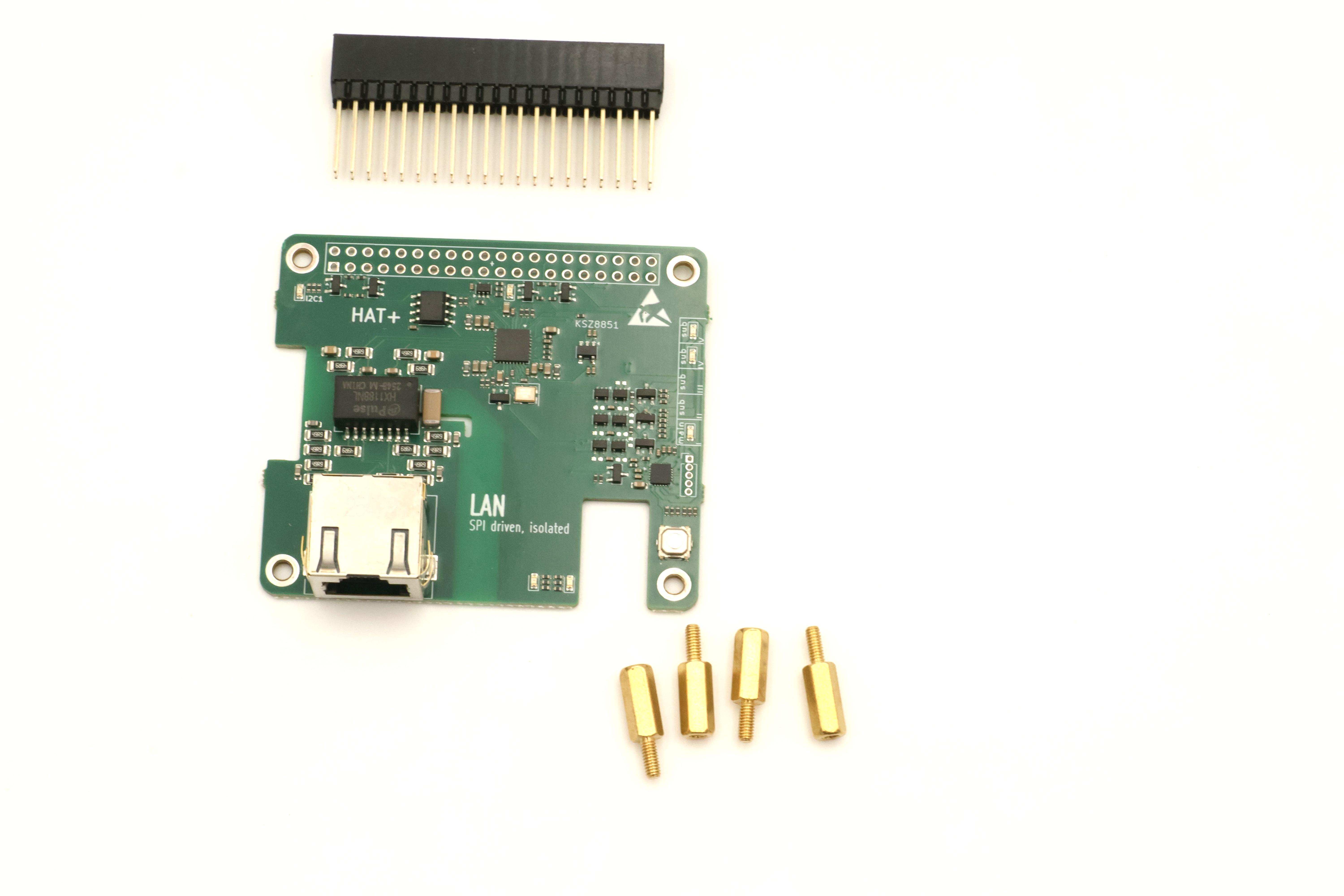

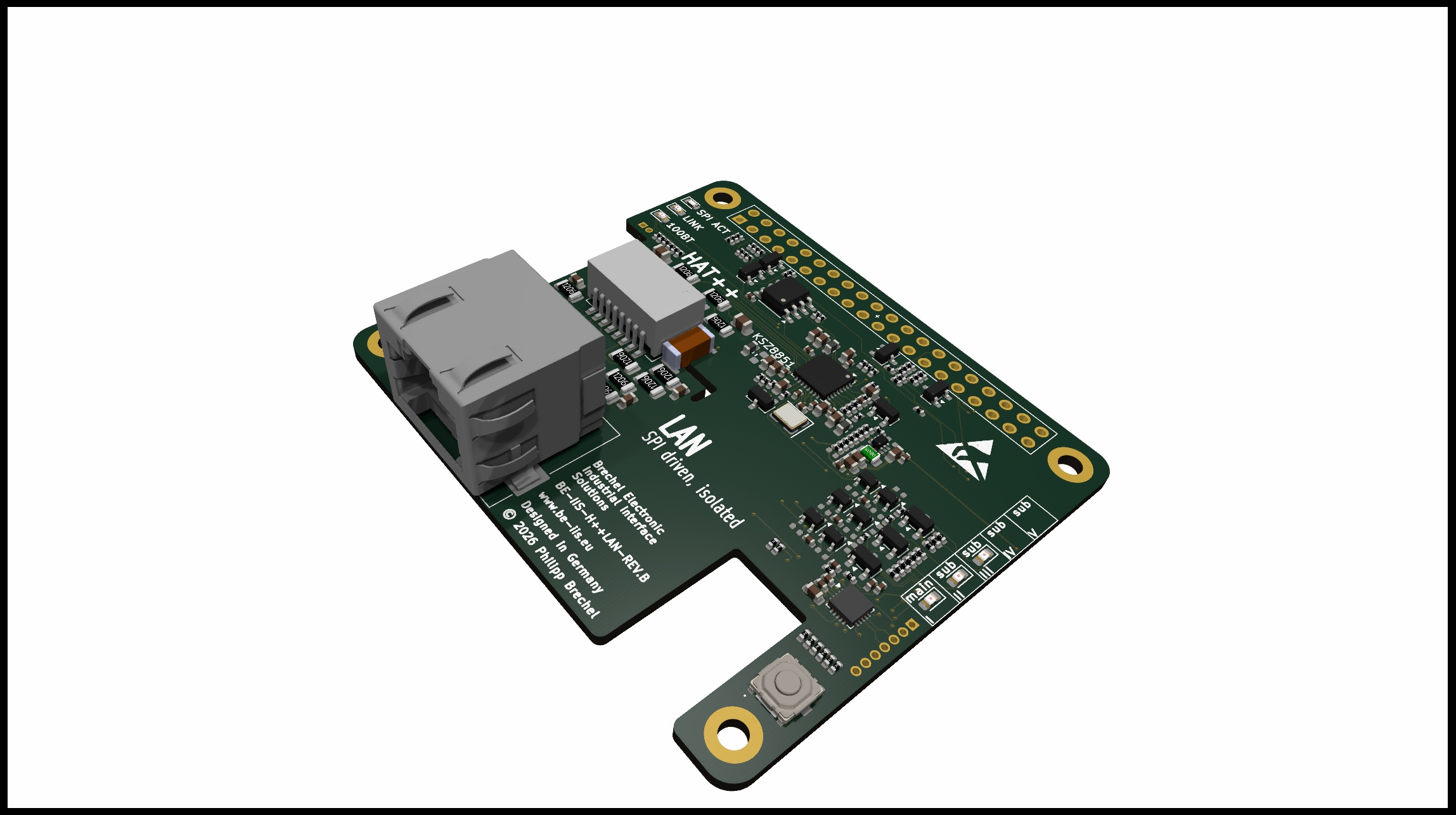

LAN Industrial HAT++
Datasheet Schematic STEP Layout
Standard Ethernet 10BASE-T / 100BASE-TX (10/100 Mbit/s) enables seamless integration into existing LAN infrastructures for industrial and embedded systems.
This HAT enables stackable LAN communication based on the KSZ8851 Ethernet controller, following the BE-IIS-HAT++ principle for seamless integration and simplified system expansion.
Key Features
- 10BASE-T / 100BASE-TX Ethernet, up to 100 Mbit/s
- KSZ8851 Ethernet controller (SPI)
- Integrated MAC + PHY
- RJ45 interface
- EEPROM for MAC-ADR
- RSP HAT+ compliant (2024)
- Stackable (BE-IIS-HAT++)

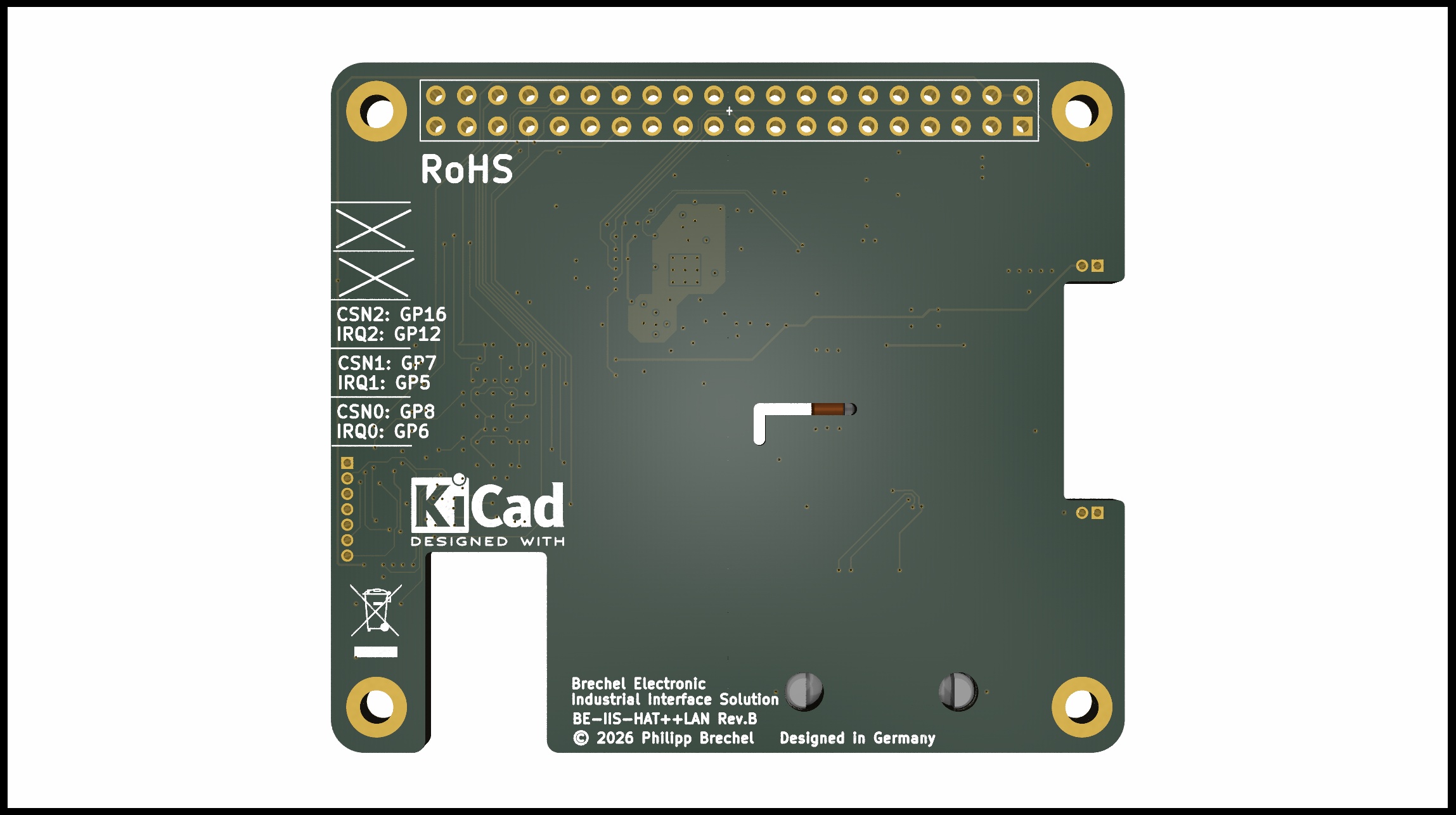

- Configurable CS & IRQ
- Auto-Negotiation support
- Compatible with standard LAN infrastructure
- RoHS compliant
- Quality component suppliers
Applications
- Ethernet / LAN network evaluation
- Debug Interfaces
- Embedded Ethernet prototyping
- Industrial network integration
- Gateway and protocol converter development
- Education and laboratory use
