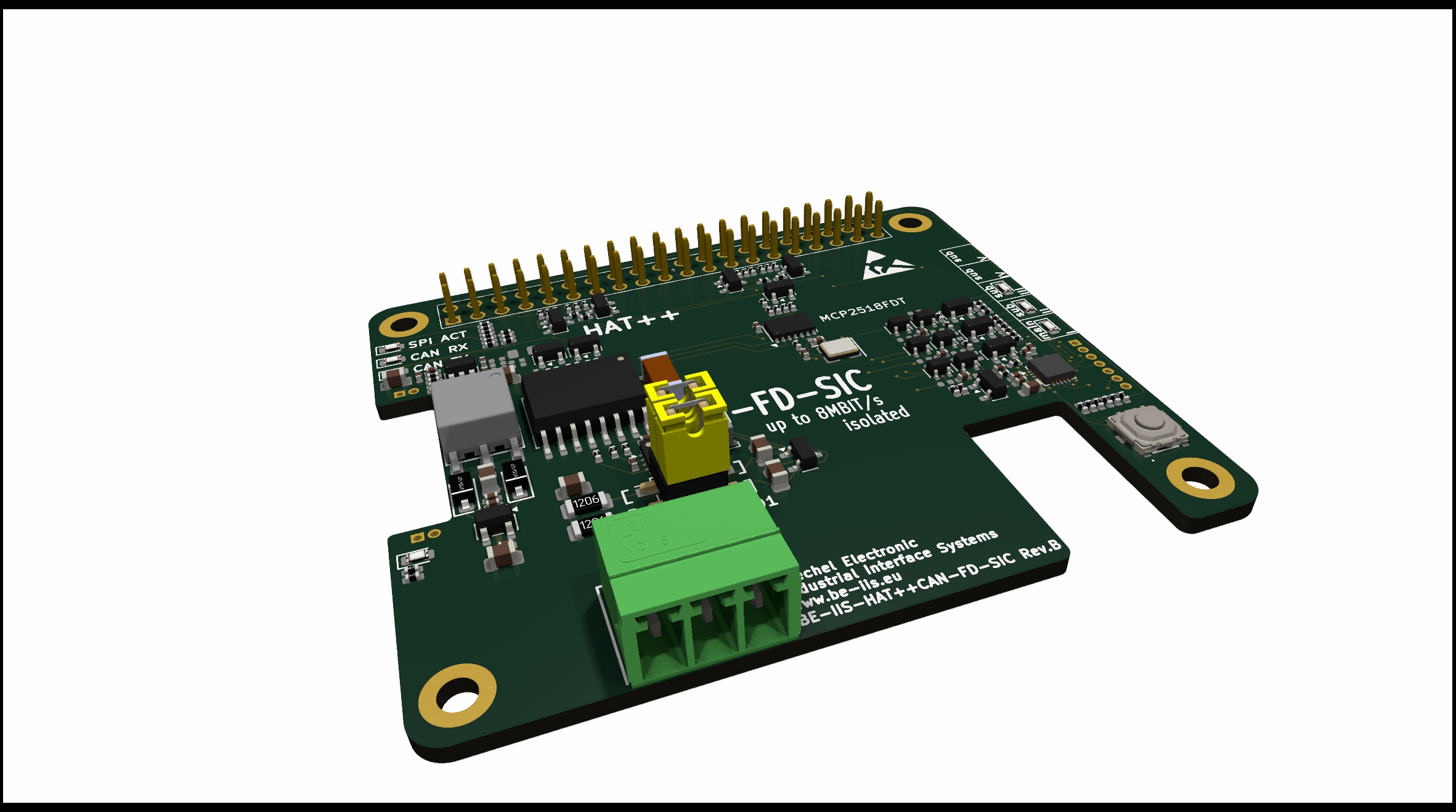

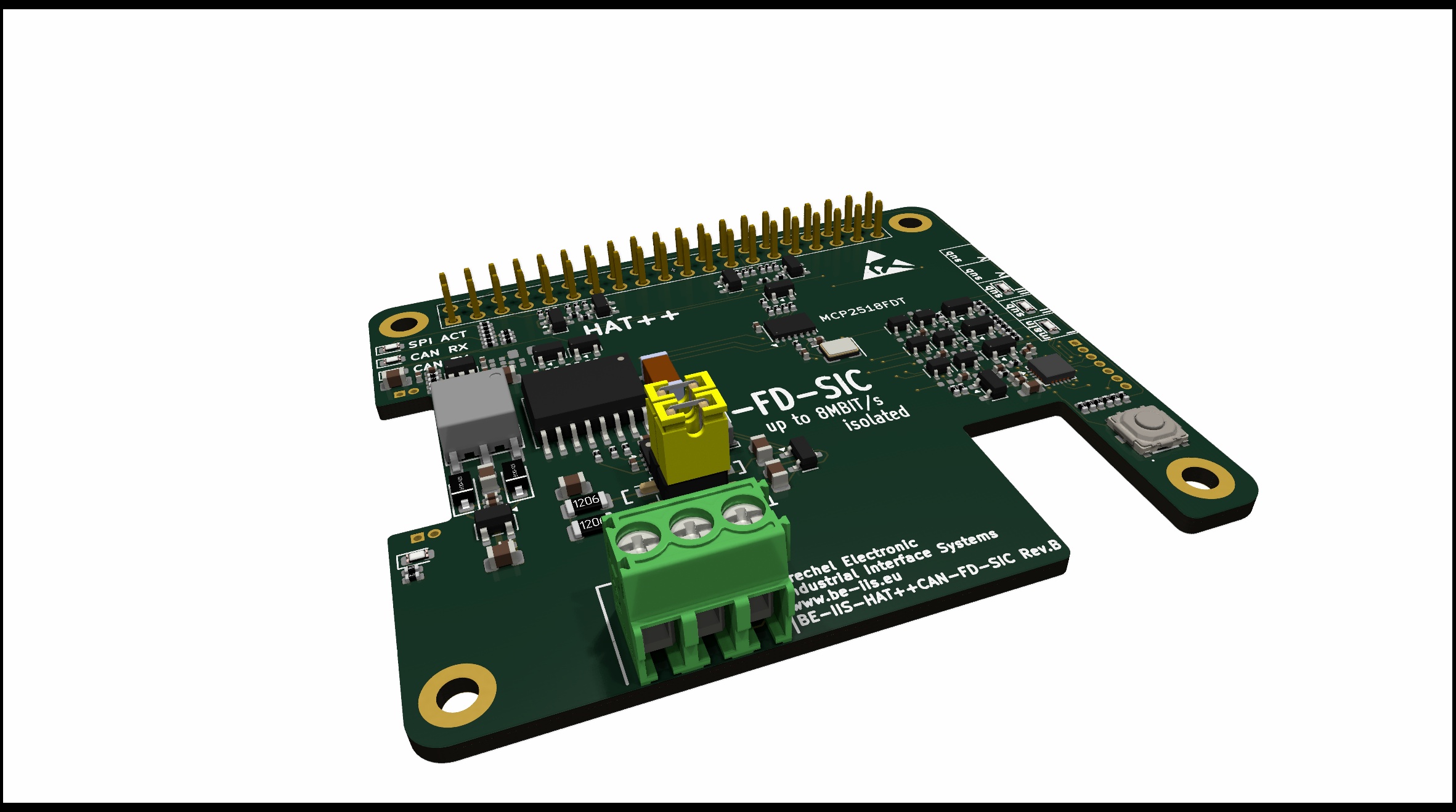

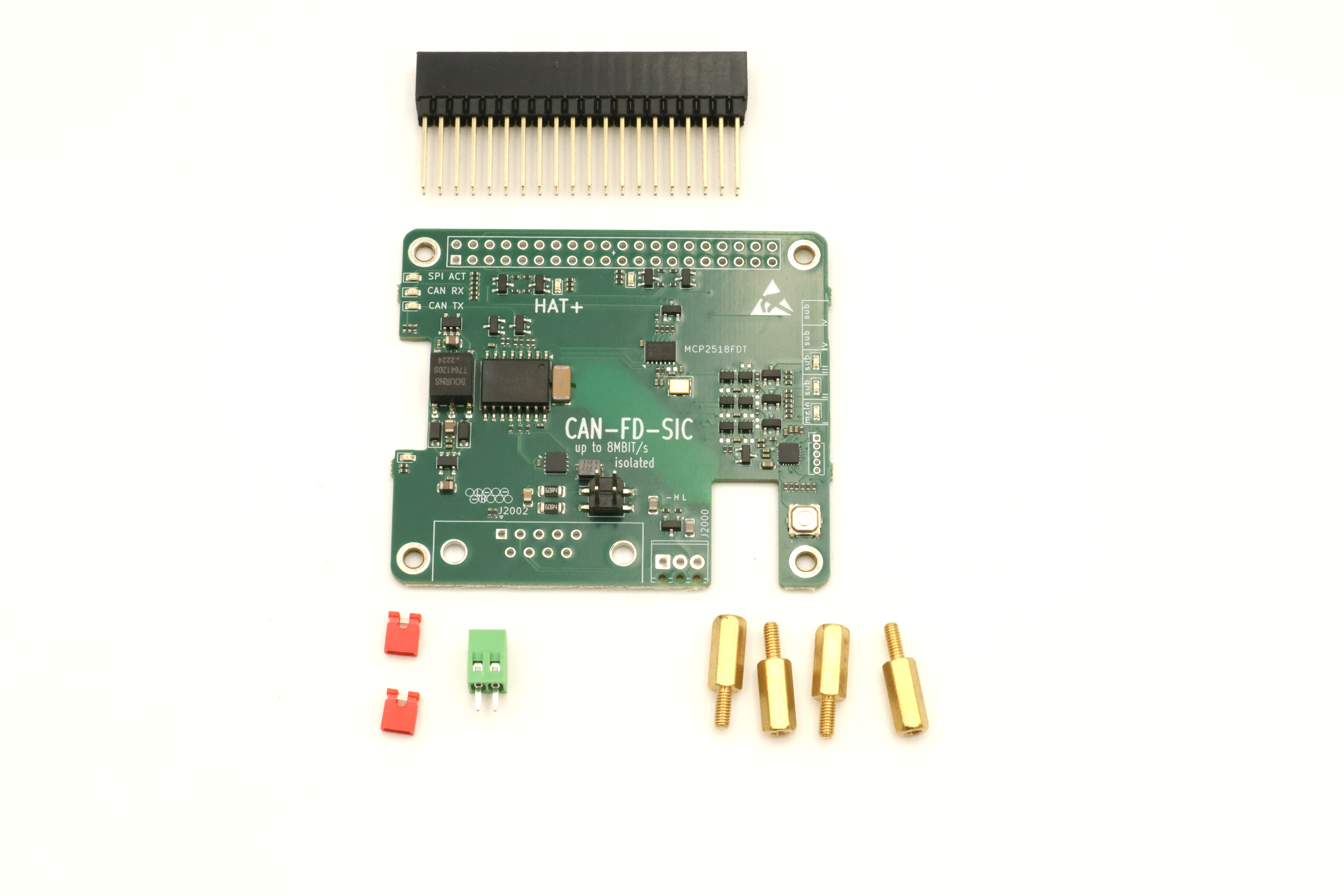

CAN-FD-SIC Industrial HAT++
Datasheet Schematic STEP Layout
CAN-FD with SIC supports data rates up to 8 Mbit/s over a differential two-wire bus, allowing reliable communication between multiple nodes within typical automotive and industrial network topologies.
This HAT enables multidrop communication based on CAN-FD with Signal Improvement Capability (SIC).
Key Features
- CAN-FD with SIC, up to 8 Mbit/s
- MCP2518FD CAN-FD controller
- TCAN1472 CAN-FD SIC transceiver
- Galvanically isolated transceiver
- Configurable 120 Ω termination
- RSP HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable CS and IRQ routing
- Two connector options
- RoHS compliant
- Quality component suppliers
Applications
- CAN and CAN-FD network evaluation
- Technology evaluation
- Prototyping
- Education and laboratory use
